PRODUCT DESCRIPTION

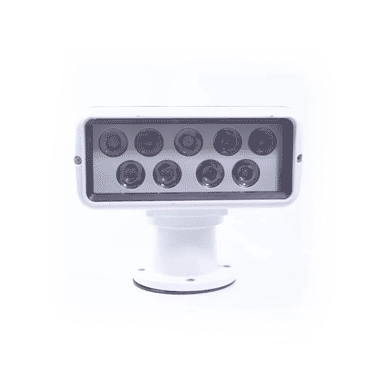

The RCL-100 LED searchlight continues to utilize the same rugged design as the original RCL-100D, but incorporates a new efficient 9 LED array that produces over 220,000 candelas of light. The strong and light aluminum housing along with glass lens are weather-sealed for years of trouble-free operation.  Other features include a wired remote that allows continuous 360 degrees of rotation at fast or slow speed without the hassle of a hard stop.  With a 7-degree beam angle, the light also provides elevation angles at 9 degrees up and 17 degrees down to make lighting draw bridges, buoys, and docks a breeze.

Not all searchlights are created equal and the body is triple-primed and painted with UV stabilizer to survive years in the harsh marine environment.  The RCL-100 LED searchlight internals a fully enclosed and provide precise pitch control of the beam while staying protected. The efficiently designed LED array provide over 40,000 hours.  The light also includes our Exclusive XRCiZ™ feature, independently rotating every 30 days from activation to ensure all bearing surfaces are free of corrosion and all electrical contacts functional.  The RCL-100 LED is weather-resistant and operates with 12 or 24 DC power.

The new ACR RCL-100 LED light is sold in a convenient kit configured as follows.

Wired Kit:  RCL-100 LED Searchlight with Master Controller and Wired Point Pad Controller (P/N 1951 or 1951.B)

Main Features of the New RCL-100 LED:

Ultra-bright, 9 LED array generates over 220,000 peak candela

Efficient, long-life LED’s – 40,000 operating hours

Reduced power consumption demand by up to 50% on 12V vessels

The controller has state-of-the-art electronics to protect the light from most power surges

Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather

Rugged triple-primed and sealed, marine-grade aluminum housing

Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included

Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional

The wiring harness of 15 feet (4.57 m)

Two-speed motor
