Airmar 200wx Weatherstation Instrument - Land-Based, Mobile, Standalone

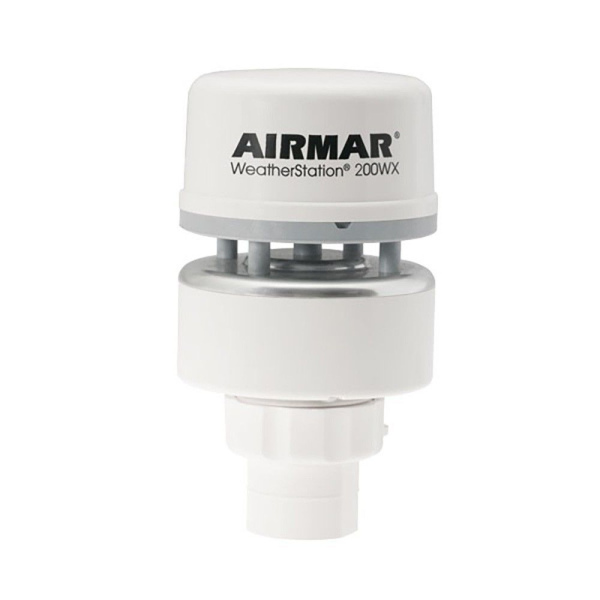

200WX WeatherStation® Instrument - Land-based, Mobile, Standalone

The WeatherStation 200WX is the best choice for mobile, land-based, weather-monitoring applications. Sensor-rich, durable, rugged, small housing that is IPX6 rated, means the 200WX can be used on moving platforms such as TV news and military vehicles.

Knowing the theoretical wind speed and direction is important and often mission-critical. The 200WX calculates the theoretical wind speed and direction based on the apparent wind (the wind you would feel on your hand if you held it out while moving), the speed of the vehicle, and the vehicle heading. Its internal 10 Hz GPS and three-axis electronic compass provides heading, position, speed-over-ground, and course-over-ground functionality that is necessary for theoretical wind-data processing on a moving vehicle.

The 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data. The patented 200WX maintains dynamic compass performance in hilly and mountainous terrain—common in military situations.

Features:

Ultrasonic measurement of apparent and theoretical wind speed and direction

Barometric pressure

Air and wind chill temperature

Relative humidity (field serviceable option)

Calculated dew point and heat index

GPS position, speed over ground, and course over ground

Three-axis, solid-state compass with dynamic stabilization

Three-axis rate gyro supplies rate-of–turn data

Three-axis accelerometer for best-in-class pitch and roll information

Housing IPX6 rated for water-ingress protection

Data output via a single cable (various lengths available)

NMEA 0183/ASCII serial data protocol over RS-232 interface

NMEA 2000 protocol over CAN

Options:

Relative humidity module

Enables dew-point and heat-index calculations

Field serviceable

WeatherStation housing rated IPX4
