Complete Maritime Solutions: is a leading provider of comprehensive maritime services, specializing in navigation, communication, and firefighting equipments. With a strong commitment to safety, reliability, and innovation, the company caters to a diverse clientele, including shipping companies, offshore operators, and marine contractors.

GNSS Position & Heading



ComNav’s G Series precision GNSS smart antennas support multi-constellation GPS, GLONASS, Beidou, Galileo and QZSS for complete redundancy. The RTK receivers are
Base Station and Rover configurable providing up to 1 cm position and up to 0.01°
heading accuracy. The products use an inertial measurement core to update precise heading, position, rate of turn, speed, heave, pitch and roll information even during temporary signal loss.



Precision Marine





The range of professional smart antenna GNSS RTK solutions compute precise positions up to 1 cm accuracy coupled with precision headings within 0.01 degrees to a range of commercial solutions with precise positions up to 2.5 meters with headings within 0.5 degrees. The range of smart antenna features allow the user to self-configure either as base station or rover for a wide range of industry applications. ComNav’s GNSS Position & Heading products are compatible with built-in industry standard interfaces including UHF SATEL radios, Cel modems, Wi-Fi, Bluetooth, NMEA 2000, NMEA 0183, Ethernet, CAN and in some models, the products are IMO compliant and Wheelmark certified.

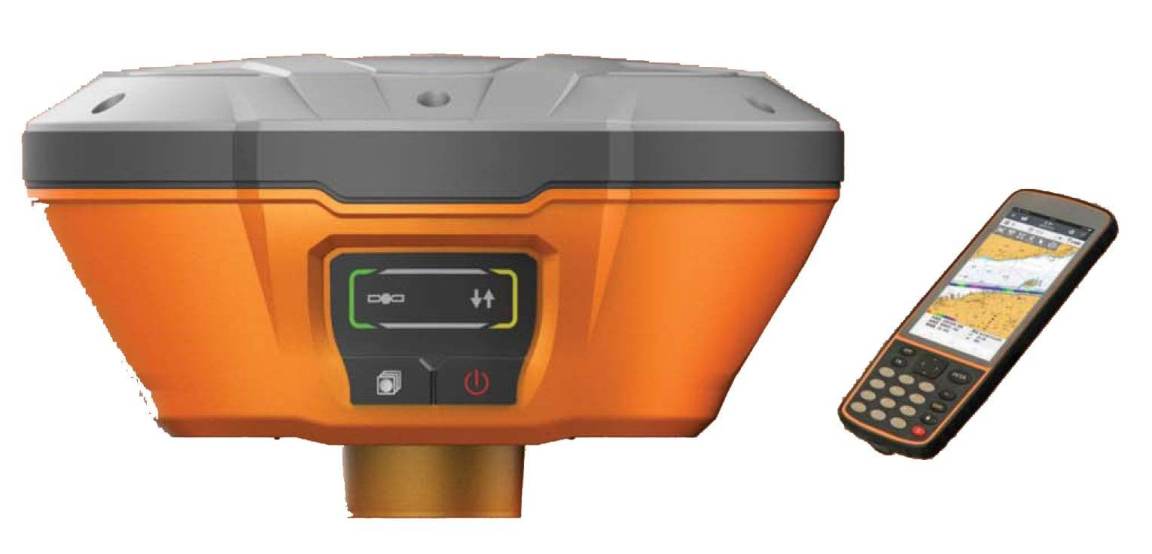

G9 GNSS SMART ANTENNA:



  • Survey Grade – 1 cm Capable
  • Rover suitable for USVs, hydrographic, research and scientific applications
  • Real Time Kinematics (RTK) data forwarding
  • FCC and CE certified
  • GPS, GLONASS, Beidou, Galileo and SBS
  • Configurable as Base Station or Rover
  • Built-in Li-Ion battery – provides up to 12 hours battery life
  • 2 year warranty
  • Operating Temp -40°C to +65°C
  • Rugged marine grade, double sealed to IP67 rating
  • Built-in 32 GB memory
  • Built in 4G cellular network modem – global coverage

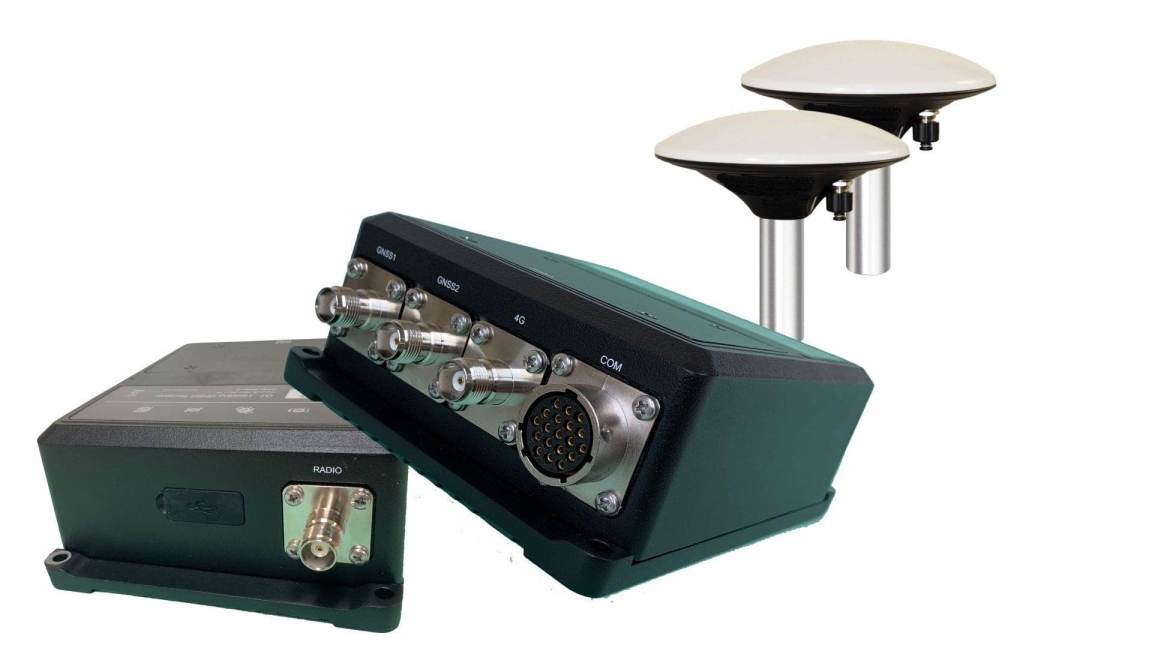

G7 HIGH PRECISION GNSS:



  • 1 cm Position, 0.01° Heading Capable
  • Professional RTK receiver suitable for USVs, dynamic positioning, hydrographic and scientific applications
  • Dual marine grade antenna for precise heading calculations
  • FCC and CE certified
  • Built-in web user interface for secure config., data retrieval and upgrades
  • GPS, GLONASS, Beidou, Galileo and SBS
  • Advanced low noise, multi-path mitigation technology coupled with high dynamic response
  • GNSS L Band Trimble RTX / OmniSTAR correction service compatible
  • Excellent for Static and Dynamic applications
  • Built-in 4 GB memory
  • 2 year warranty
  • Built in 3G cellular network modem – global coverage
  • Shock resistant to 2 m fall onto concrete

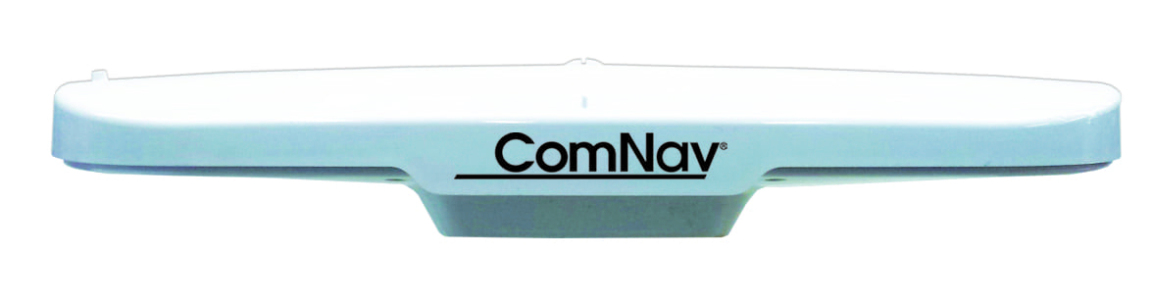

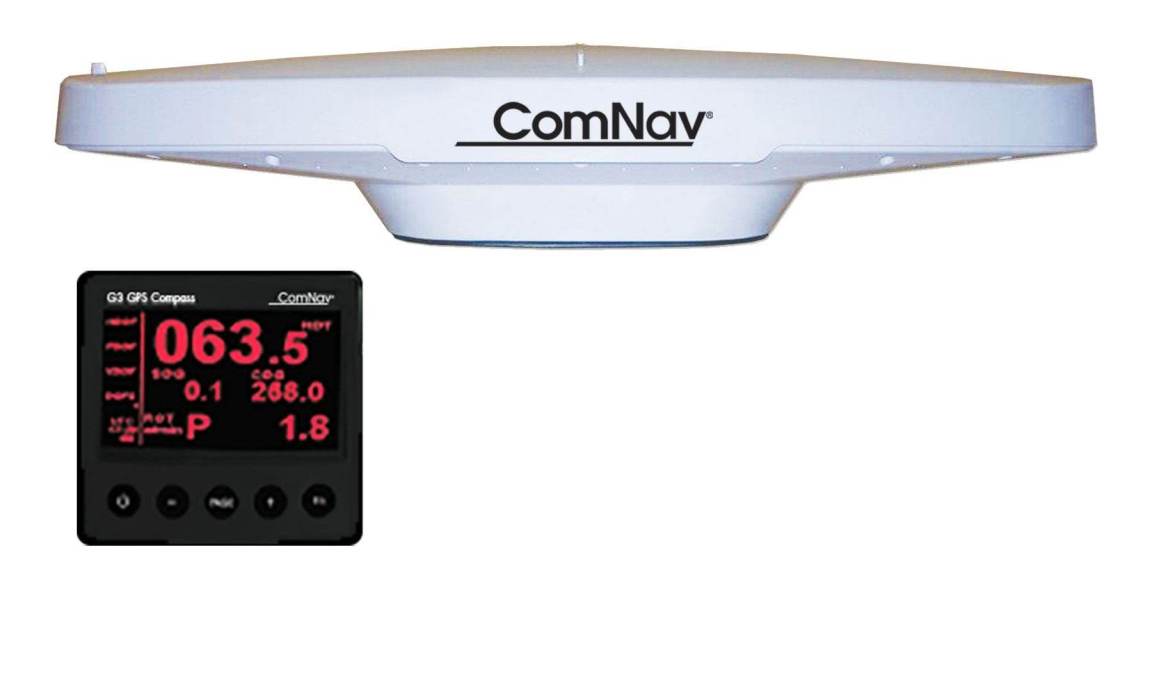

G3 & G3B SMART ANTENNA:
  • Engineered enhancements to exceed sealed IP67 rating
  • Heading updates 1 to 20 Hz
  • BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
  • Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long position, Time & Date
  • CE certified for EMI and RFI immunity
  • IMO compliant, Wheelmark certified
  • Optional G3 color display system
  • Extended 2 year warranty
  • Heave, Pitch, Roll and Rate of Turn as standard output
  • Operating temp -30°C to +70°C
  • Power supply isolated from serial ports
  • Tilt sensor assists in fast start-up of heading solution

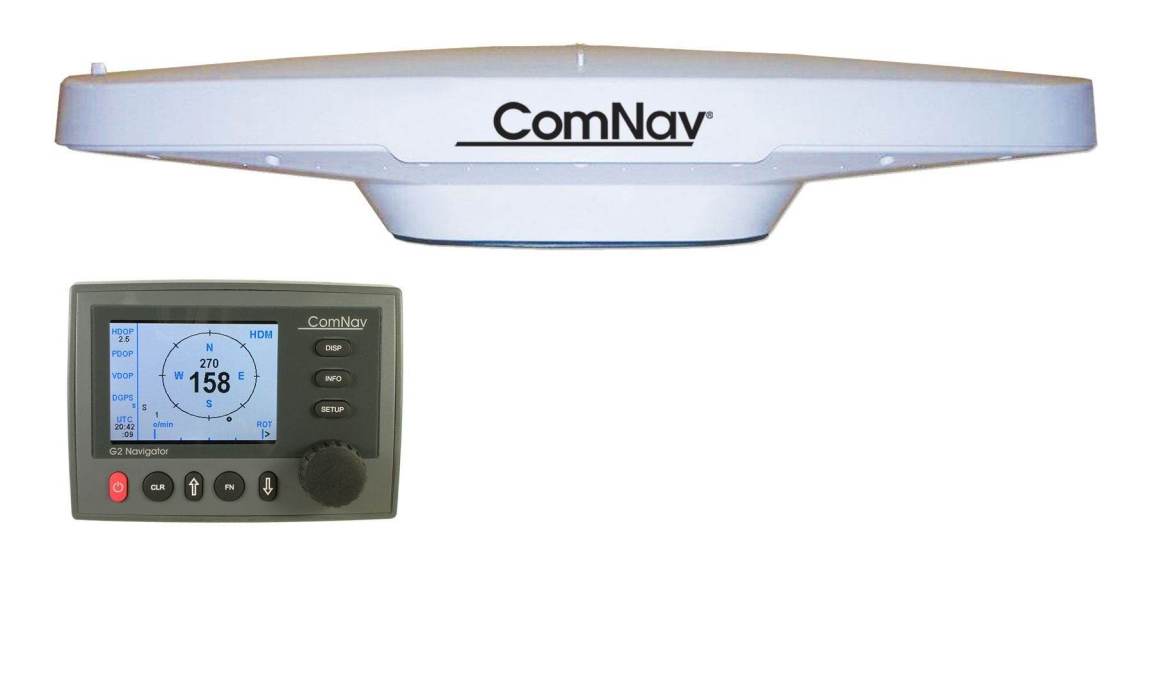

G2 & G2B SATELLITE COMPASS:
  • Supports both GPS and GLONASS satellites for complete redundancy
  • IMO Compliant G3 color display system (optional)
  • Engineered enhancements to exceed sealed IP67 rating
  • BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
  • Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long position, Time & Date
  • CE certified for EMI and RFI immunity
  • Extended 2 year warranty
  • Heave, Pitch, Roll and Rate of Turn as standard output
  • 15 meter serial cable standard (30 meter optional)
  • Operating temp -32°C to +74°C
  • Tilt sensor assists in fast start up of heading solutions
  • Power supply isolated from serial ports
G1 GNSS SATELLITE COMPASS:



  • Engineered enhancements to exceed sealed IP67 rating
  • Heading updates 1 to 20 Hz
  • BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
  • Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long position, Time & Date
  • CE certified for EMI and RFI immunity
  • Worldwide service

  • Optional G3 color display system

  • Extended 2 year warranty
  • Heave, Pitch, Roll and Rate of Turn as standard output
  • Operating temp -30°C to +70°C
  • Power supply isolated from serial ports
  • Tilt sensor assists in fast start-up of heading solution

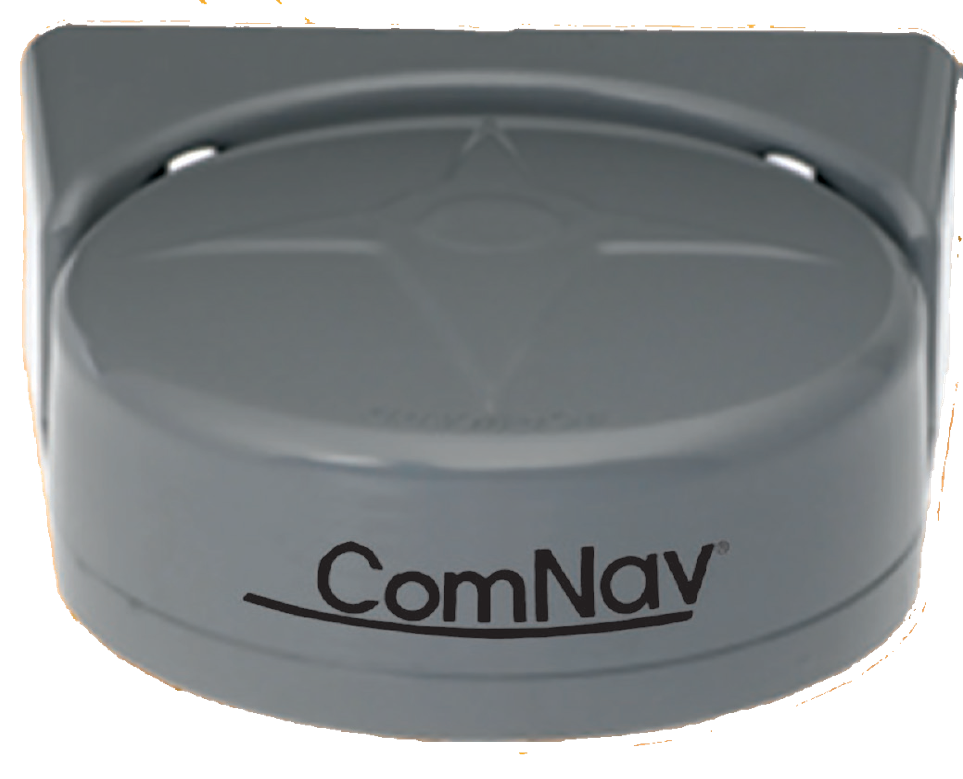

RC3 SOLID STATE RATE COMPASS:



  • Engineered enhancements to exceed sealed IP67 rating
  • Heading updates 1 to 20 Hz
  • BAUD Rate selectable: 4800, 9600, 19200, 38400,115200
  • Pre-programmed default settings for Heading, Rate of Turn, Course over Ground, Lat/Long position, Time & Date
  • CE certified for EMI and RFI immunity
  • Worldwide service
  • Optional G3 color display system
  • Extended 2 year warranty
  • Heave, Pitch, Roll and Rate of Turn as standard output
  • Operating temp -25°C to +55°C
  • Power supply isolated from serial ports
  • Tilt sensor assists in fast start-up of heading solution
